Steel Perforated Square Tube 2 x 2 x 12 gauge wall
Steel Perforated Square Tube 2 x 2 x 12 gauge wall
Input dimensions for pricing
Note: all materials measured by the INCH. Example: Cut Length 15" plus Additional 1/8" yields a piece cut to 15-1/8" (15.125").
'Standard' alignment will yield pieces that may vary in distance from the cut end to the FIRST hole location. 'Aligned' will yield pieces where the distance from the cut end to the FIRST hole is uniform in each piece. No matter which option is selected, the holes throughout the pieces will be spaced evenly; this is only the measurement from the cut end to the FIRST hole.
Couldn't load pickup availability

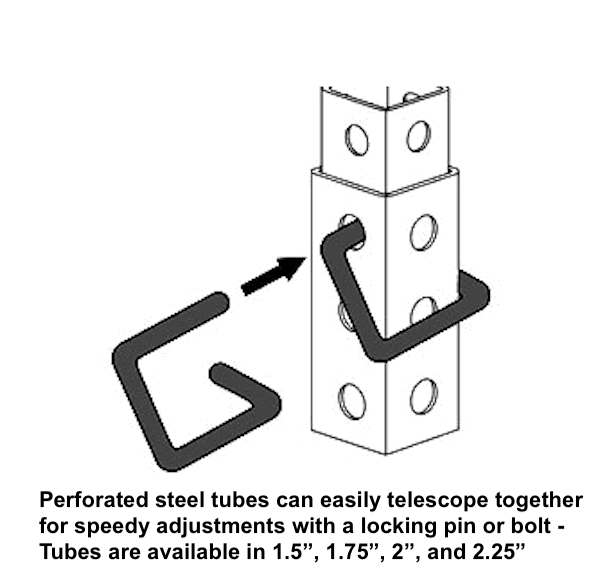

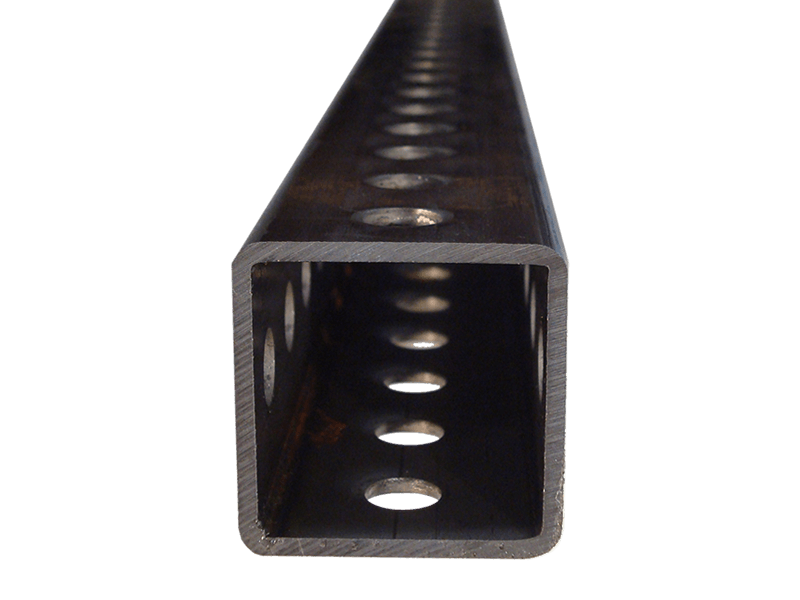

Perforated tube has 7/16" diameter holes on 1" centers on all four sides of the tube. The 1-3/4 x 1-3/4 x 12 perforated tube is designed to be telescoped into our 2 x 2 x 12 ga perforated tube and can be used with our locking pins.
Longer lengths and quantity discounts available. Contact for quote.
| Outside Width | 2.000 Inches |
| Outside Height | 2.000 Inches |
| Thickness | 0.105 Inches |
| Length | Customer Input |
| Weight per Foot | 2.41 Pounds |
Material will have a saw cut tolerance of -0" to +1/8".
